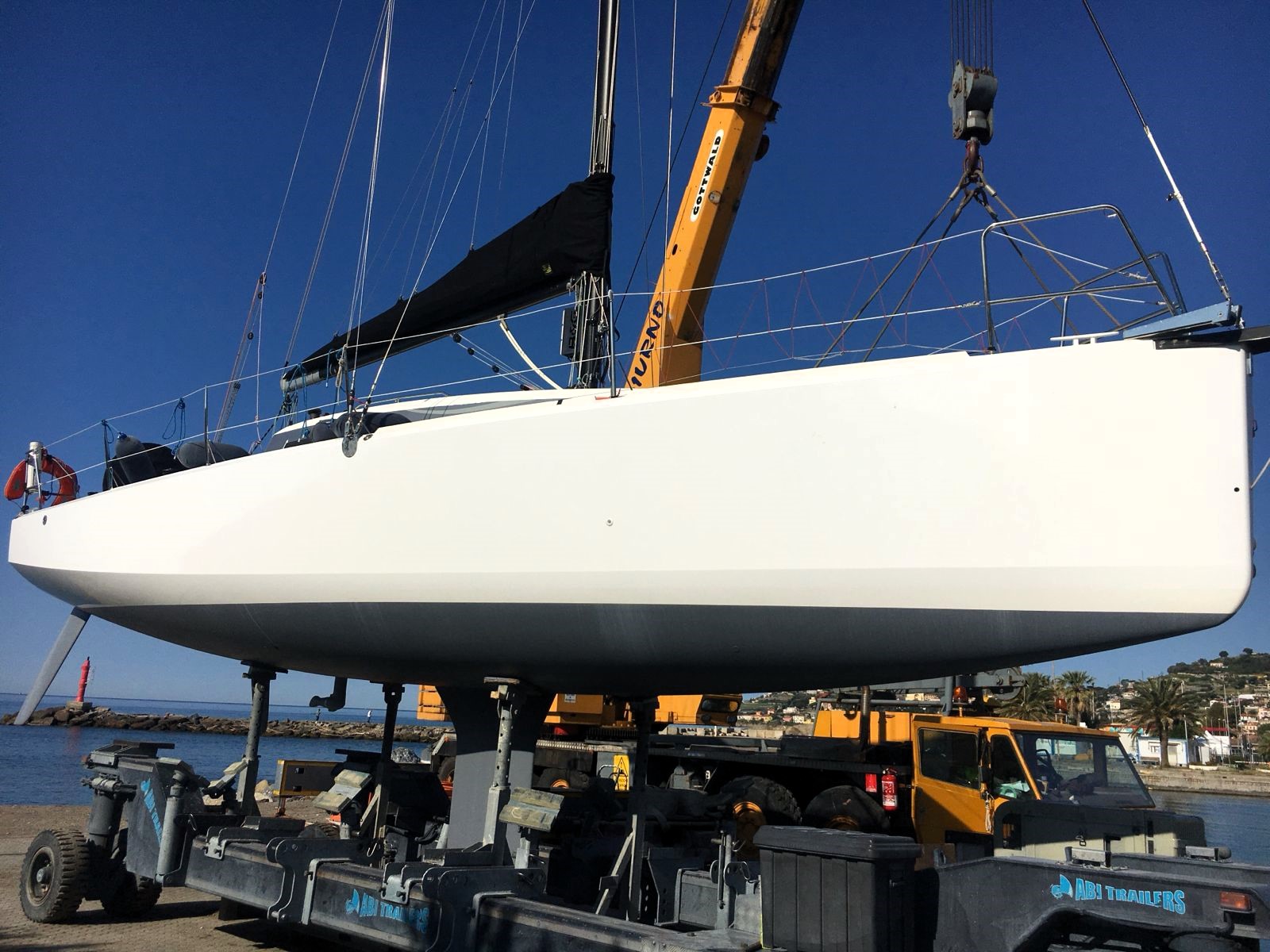

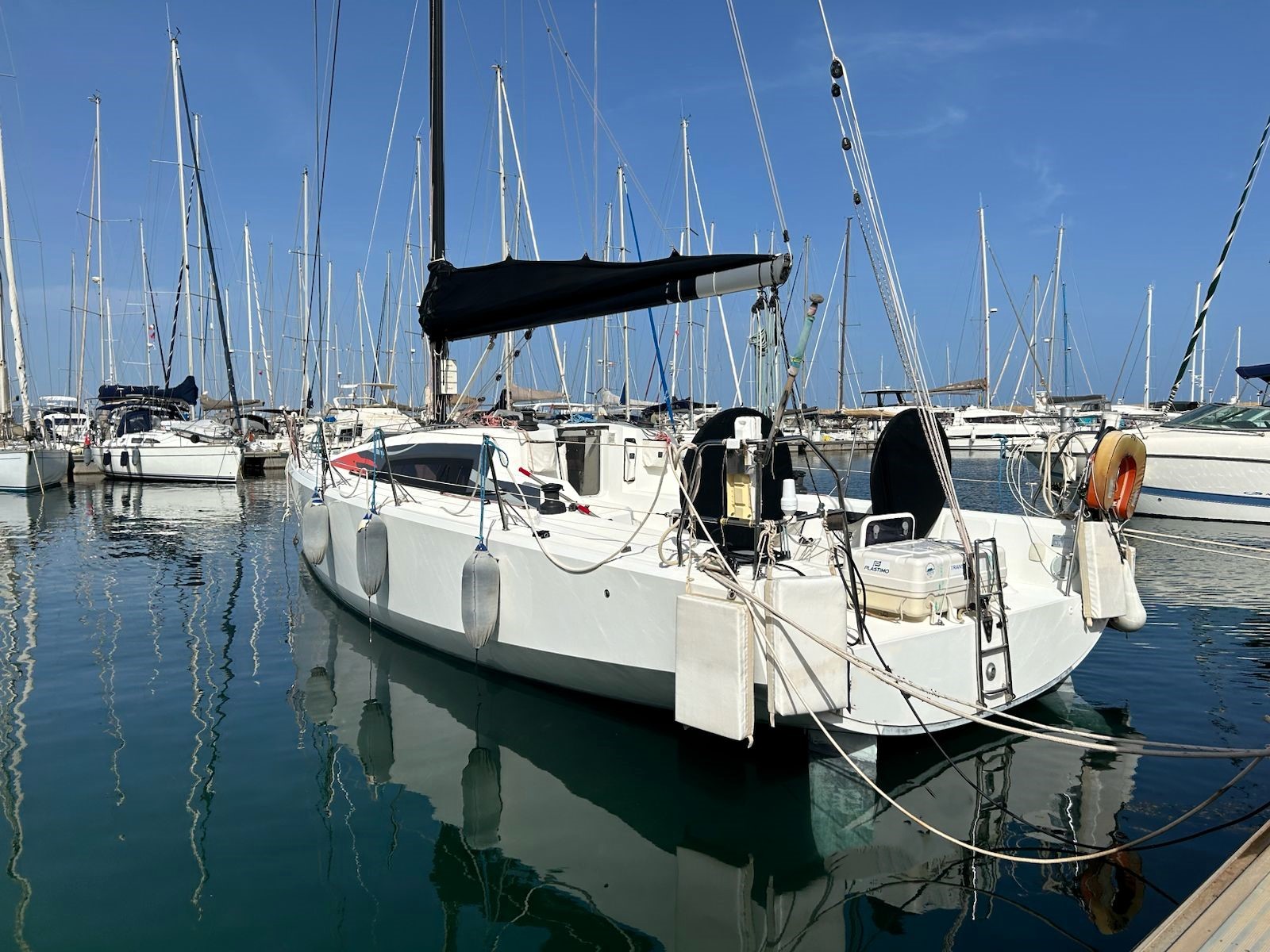

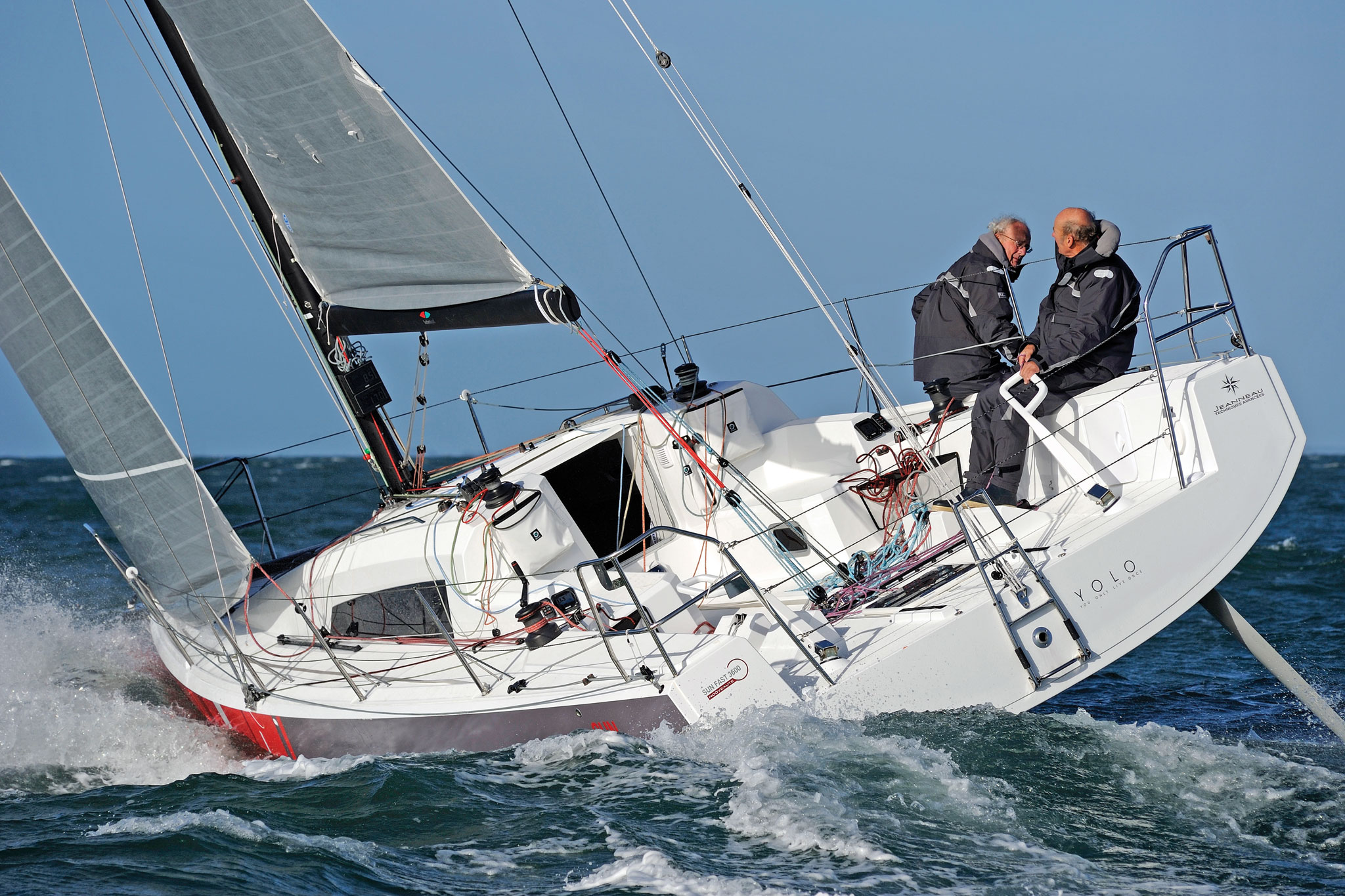

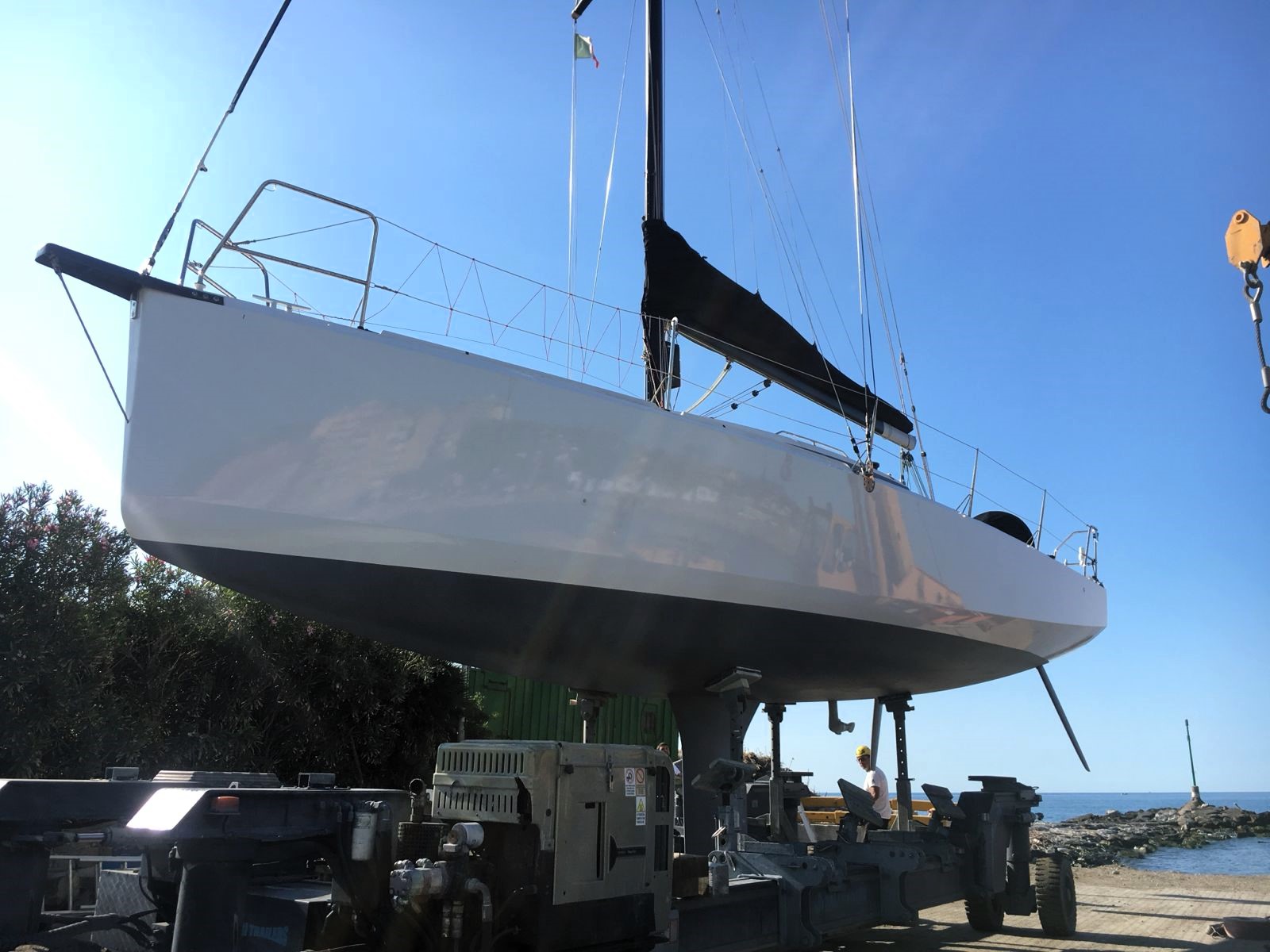

Designed by the naval architect, Daniel Andrieu, the Sun Fast 3600 has been entirely constructed by infusion moulding, a technology which confers resistance and rigidity. With its strong, light, stepped hull, twin rudders, and lead keel, this 2015 Sun Fast combines speed and course stability in all conditions. Perfectly adapted to racing single-handed, double-handed, or fully crewed, the Sun Fast 3600 has demonstrated excellent performance in both inshore and offshore races.

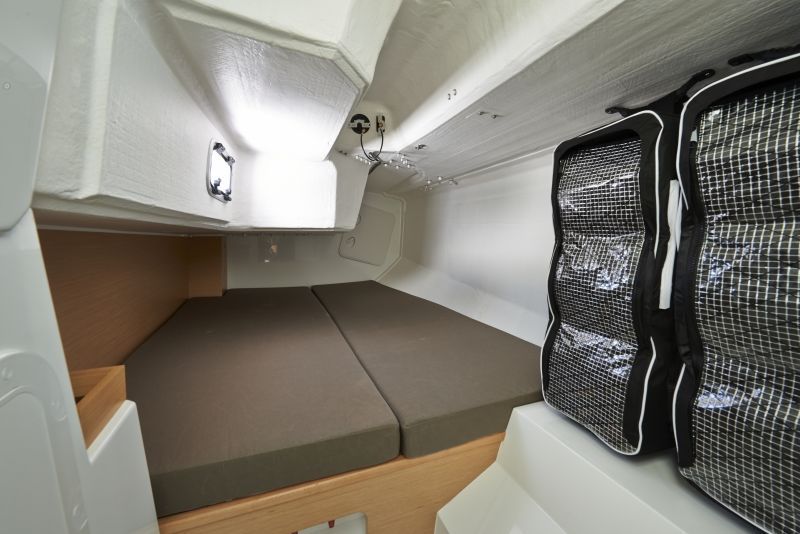

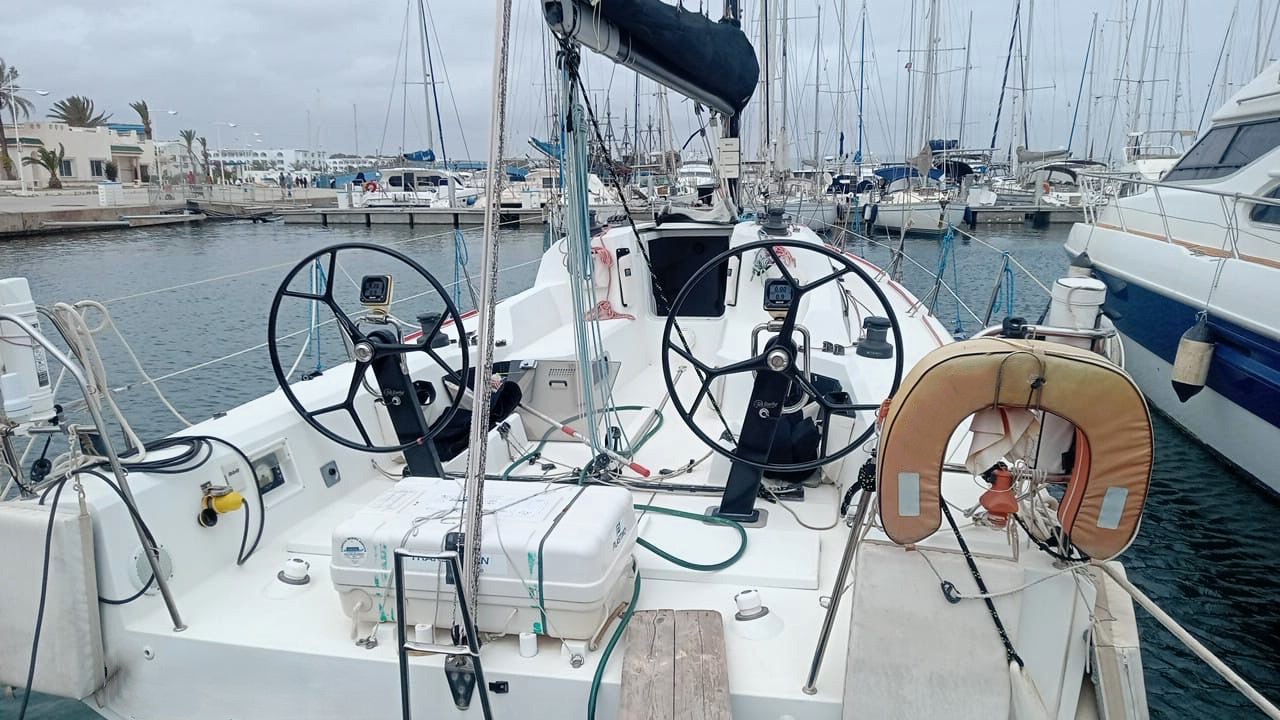

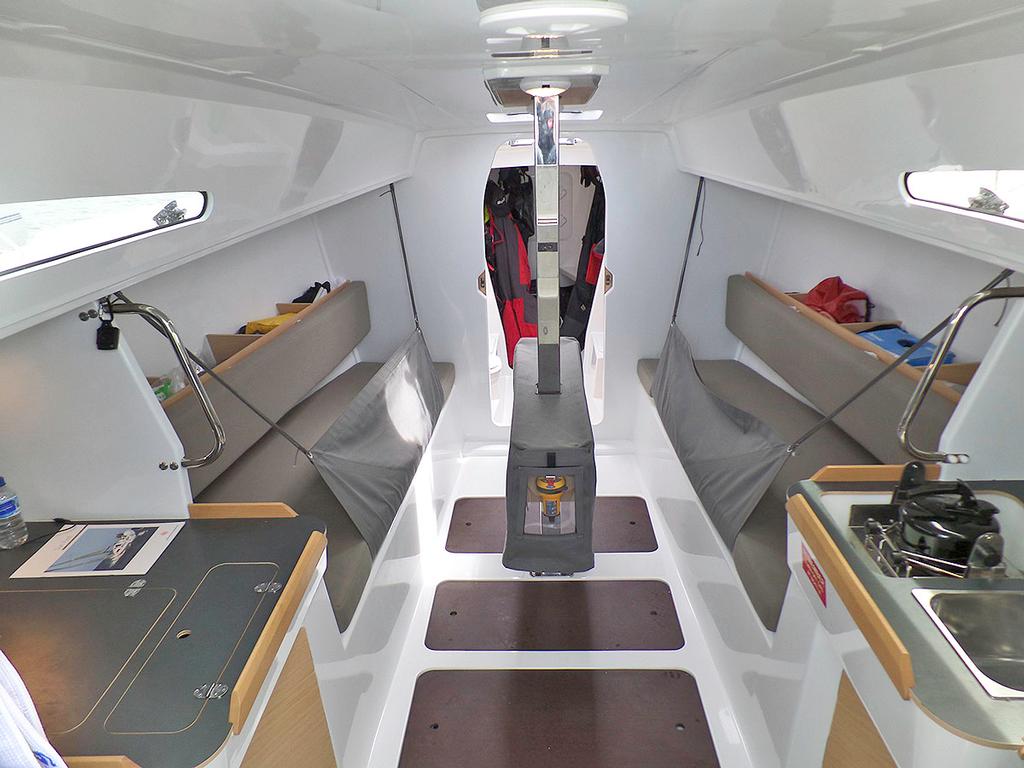

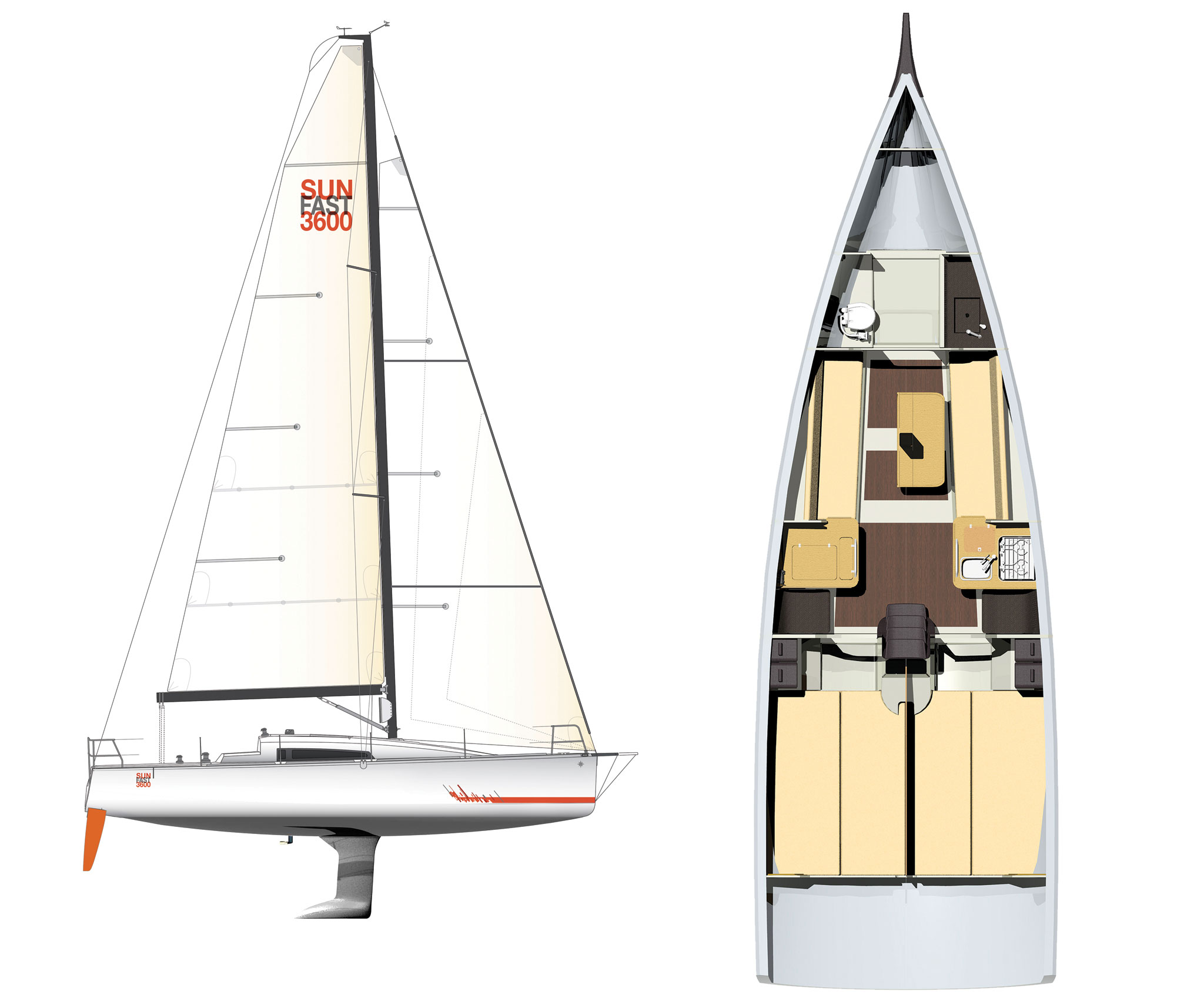

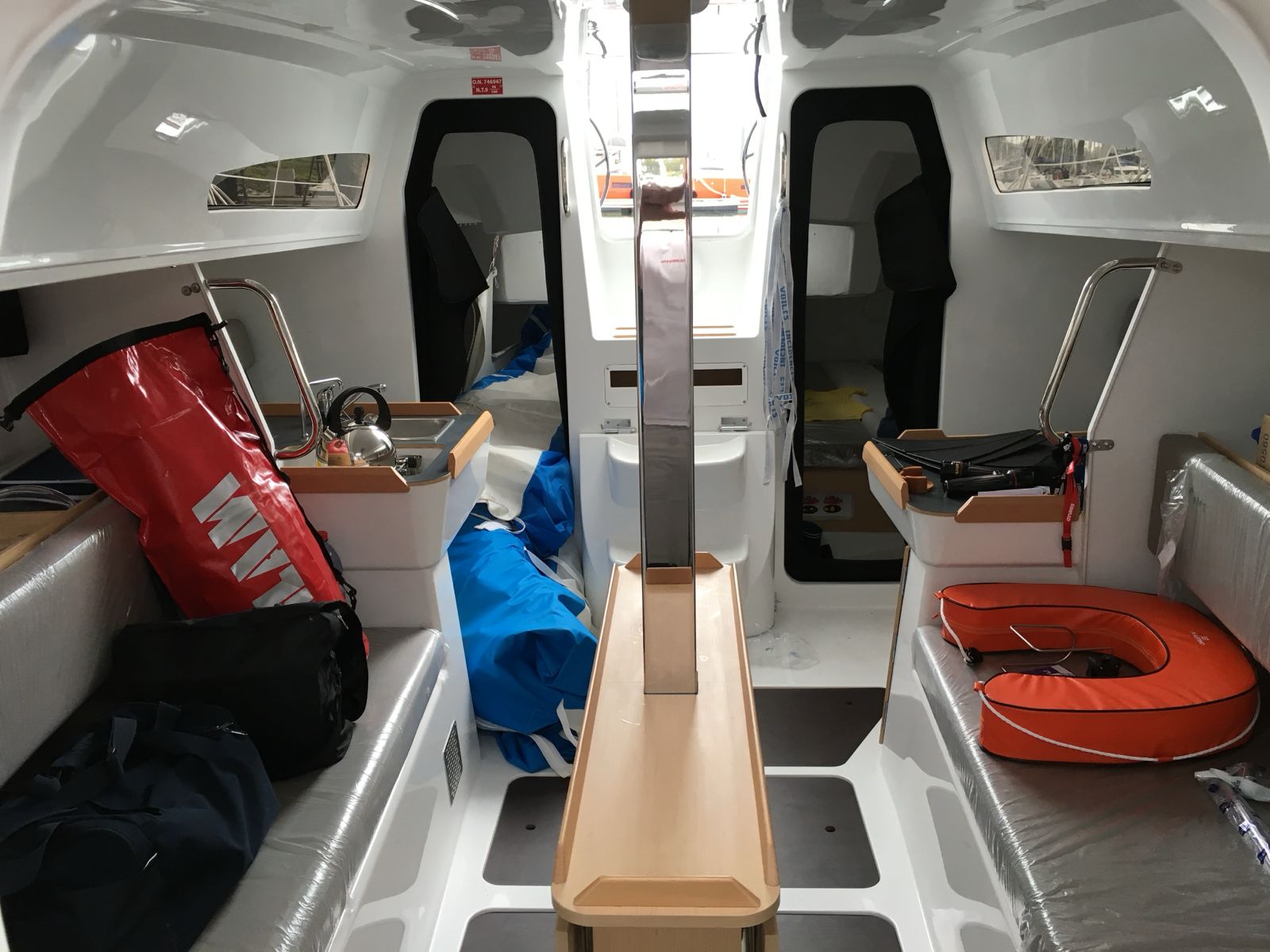

With a streamlined, efficient design, the interior layout accommodates six people, distributed between the two aft cabins and two bench seats in the saloon. A galley and separate head provide for a pleasant life on board, while the saloon enables you to enjoy a relaxing moment with friends after a lively sail. The ergonomic design of the cockpit is optimised for easy, efficient handling.
Specifications
Engine
Yanmar 3YM20
Power: 21 hp
Dimensions
LOA: 11 m 25 cm
Beam: 3 m 55 cm
Max Draft: 2 m 13 cm
2 x Cabins
1 x Head
Mainsail
2 full batten and 2 leech battens.
Battens pockets protected by straps sawn both sides.
Battens installed in nylon receptacles on luff and leech.
Tension to be adjusted on leech
Rutgerson cars for battens
Radial patches at head, tack, clew and reefs.
Free foot
Tack: Strapped ring
Head: square top with batten
Clew: pressed ring with collar around the boom.
Reef tack: pressed ring + webbed ring.
Reef clew: pressed ring
Seams stitched using 3 steps with white UV protected thread.
Leech line with purchase using blocks.
Aluminium clam cleat at each reef exit on luff.
Draft stripes, tell tales, transport bag. .
Area : 39.60 m²
Cloth : D4 Black Aramid/taffeta one side
Weight : 17 500 dpi
J1
Luff adapted for Tuff Luff
Tack: Webbing reinforcement in tack.
Clew: Rutgerson type ring or webbing only.
Seams stitched using 3 steps with white UV protected thread.
Leech line with purchase using blocks, Aluminium clam cleat protected in a pocket.
Foot line.
Draft stripes, tell tales, transport bag.
Area : 32.5 m²
Cloth : D4 Black Aramid/taffeta one side
Weight : 12 500 dpi
J3
Luff adapted for Tuff Luff
Tack: Webbing reinforcement in tack.
Clew: Rutgerson type ring or webbing only.
Seams stitched using 3 steps with white UV protected thread.
Leech line with purchase using blocks, Aluminium clam cleat protected in a pocket.
Foot line.
Draft stripes, tell tales, transport bag.
1 reef
Area : 23 m²
Cloth : combination Dacron and Spectra/Dyneema
Cut: Triradial
Weight : H 303/343
Trisail
Area : 10 m²
Cloth : Orange Dacron
Weight : 8.3 oz - 350 g
Cut : Cross Cut
Storm Jib
Hanks on jib or similar system
Tack and Head: strapped rings.
Clew: strapped ring or webbing only
Seams stitched using 3 steps with white UV protected thread.
Leech line with purchase using blocks, Aluminium clam cleat protected in a pocket
Foot line
Draft stripes, tell tales, transport bag.
Area : 8 m²
Cloth : Orange Dacron
Weight : 8.3 oz - 3
Sail Cover
Cover in acrylic (dralon) adapted to sail equipped with slides.
