2004 Sunseeker Manhattan 56

Main Info

Built

2004

Model

Manhattan 56

Location

Corfu, Greece

Accomodation

Draft

1.30

Builder

Sunseeker

Engine Type

2 x Caterpillar 3406 TA

Engine Hours

1540

Engine HP

2 x 800hp

Beam

4.59

Length

17.9

Overview

Ready to go | Upgraded Systems | VAT Paid

A well-specified Sunseeker Manhattan 56 offering the right balance of volume, performance, and owner-friendly operation. Built in 2004 and maintained with discipline, this yacht is technically current and immediately deployable.

Key Specifications

LOA: 17.9 m (58 ft)
Beam: 4.59 m
Engines: Twin Caterpillar 3406 TA – 2 × 800 HP
Accommodation: 3 guest cabins + 1 crew cabin
Capacity: 7 guests + crew

Interior & Layout
Three well-proportioned guest cabins deliver genuine cruising comfort, supported by a separate crew cabin for operational flexibility. The interior is finished in warm, timeless materials, prioritising usability over excess — practical, bright, and easy to maintain.

Exterior & Deck Areas

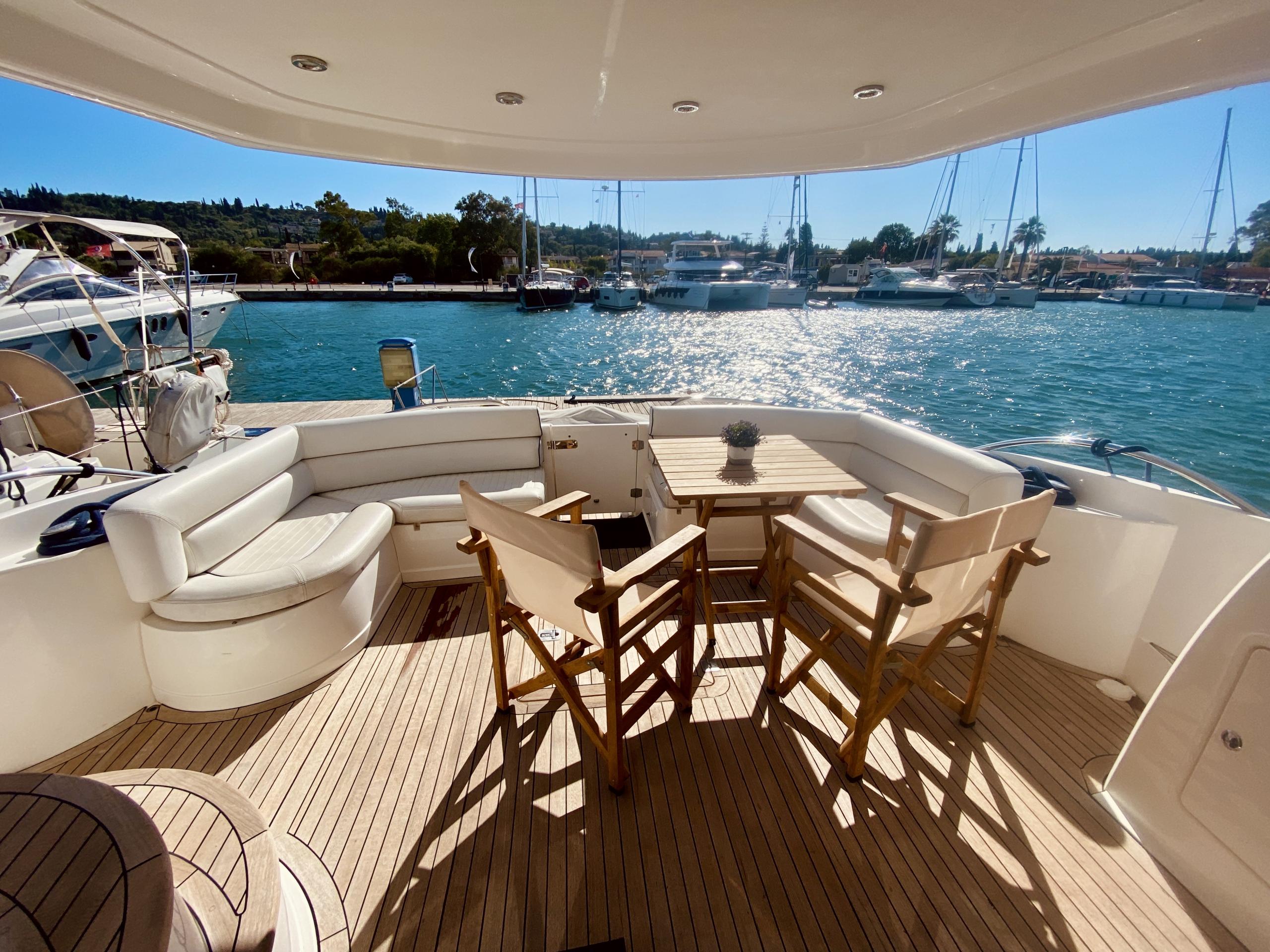

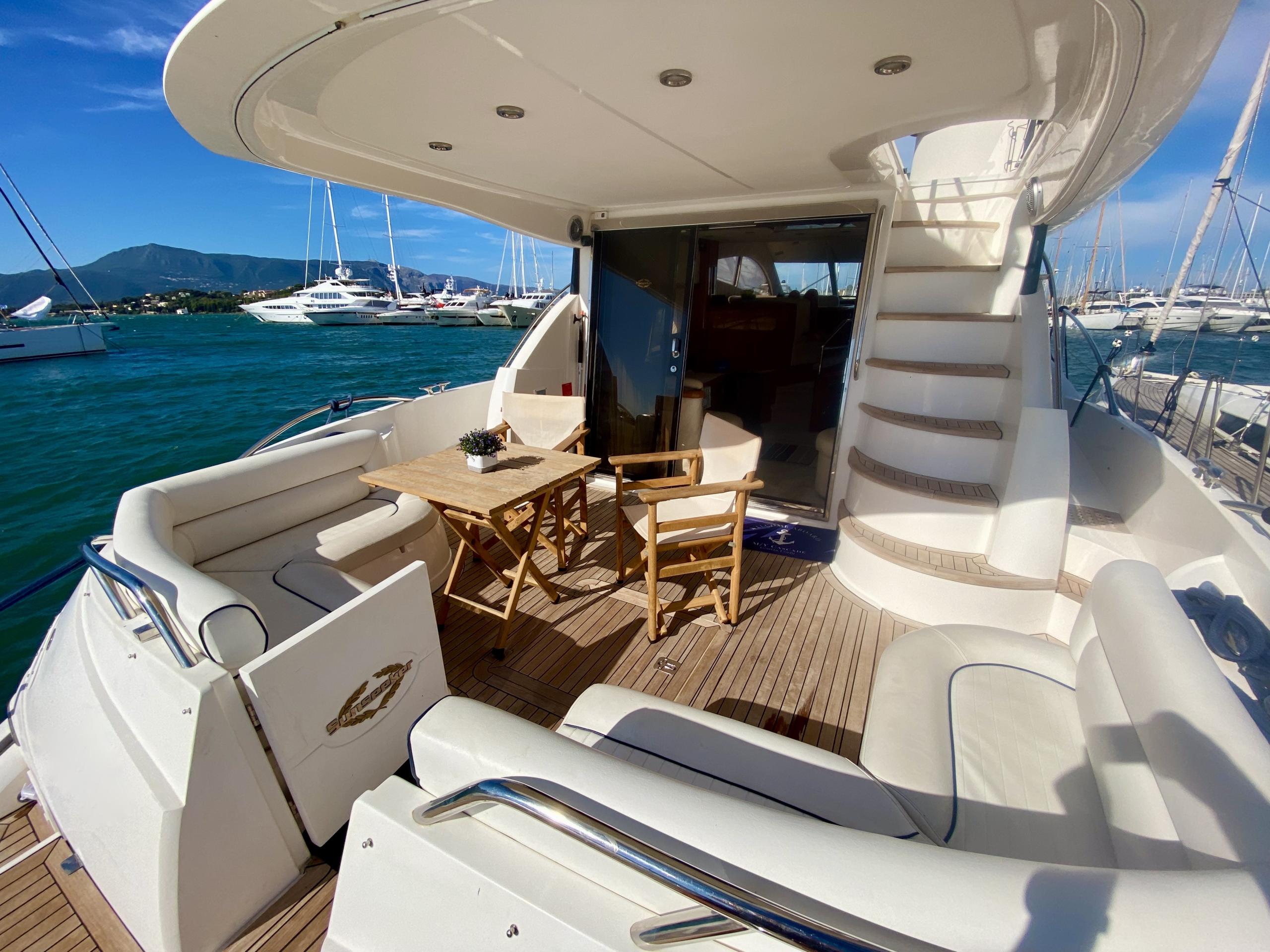

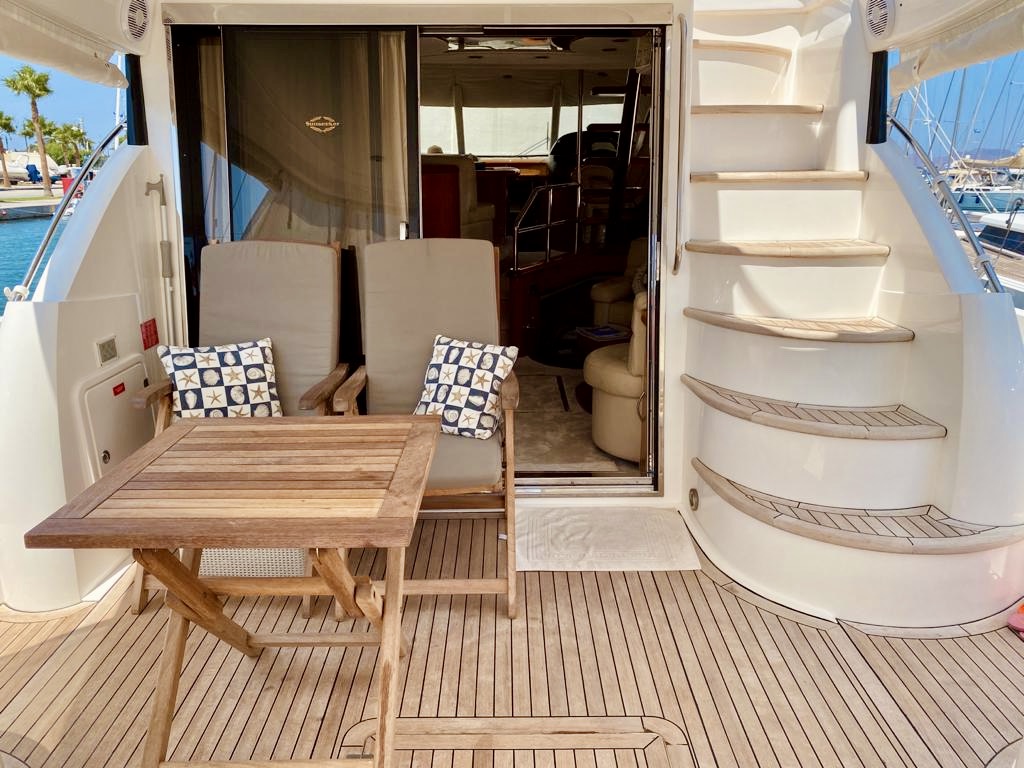

Teak-laid cockpit with fixed seating and dining table
Hydraulic bathing platform for effortless sea access and tender handling
Functional flybridge layout suited to both owner-operation and hosting

Navigation & Entertainment Upgrades

Garmin navigation suite (2022)
Bluesound audio system (2023)
Network-enabled smart TVs
4G router for onboard connectivity

Recent Technical Works

Anti-osmotic treatment completed
Prop shaft seals & cutlass bearings replaced
Continuous, documented maintenance regime

Summary

This Manhattan 56 is not a project and not a compromise. It is a correctly upgraded, mechanically sound yacht suited for private Mediterranean cruising or light charter use. Serious interest only.

Viewings available upon request.

Specifications

Engine 1 : 2004 Caterpillar 3406 TA

Engine Type: Inboard
Fuel Type: Diesel
Drive Type: Shaft Drive
Power: 800 HP
Engine Hours: 1540

Engine 2 : 2004 Caterpillar 3406 TA

Engine Type: Inboard
Fuel Type: Diesel
Drive Type: Shaft Drive
Power: 800 HP
Engine Hours: 1540

Dimensions

LOA: 17m 90 cm
Beam: 4 m 59 cm
Max Draft: 1 m 30cm

Electrical Equipment

Kohler Generator 11 KVA with 5.600 Hours (Genset replaced June 2023)
Mastervolt Inverter
Victron Battery Charger (2018)
4 x Service Batteries
4 x Start Batteries
1 x Battery for Bow Thruster
1 x Battery for Generator
Shore Power Inlet

Navigation and Communication Equipment

Garmin 1223xsv Plotter (2022)
Garmin 1223 Plotter (2022)
Garmin GMR Fantom 54 4ft Open Array Radar (2022)
2 x Garmin GMI20 MFD displays (2022)
2 x Garmin GHC20 Autopilot displays (2022)
Garmin 315i VHF + Active speakers (2022)
2 x Garmin GHS11i VHF Handsets (2022)
Garmin GC200 Stern View Camera (2022)
Garmin AIS800 Transponder (2022)
Zipwake Trim system (2022)

Domestic Equipment

Galley:

Freezer
Fidge
Microwave
Dishwasher
Electric Hotplate
Electric Stove
Washing Machine
Dryer

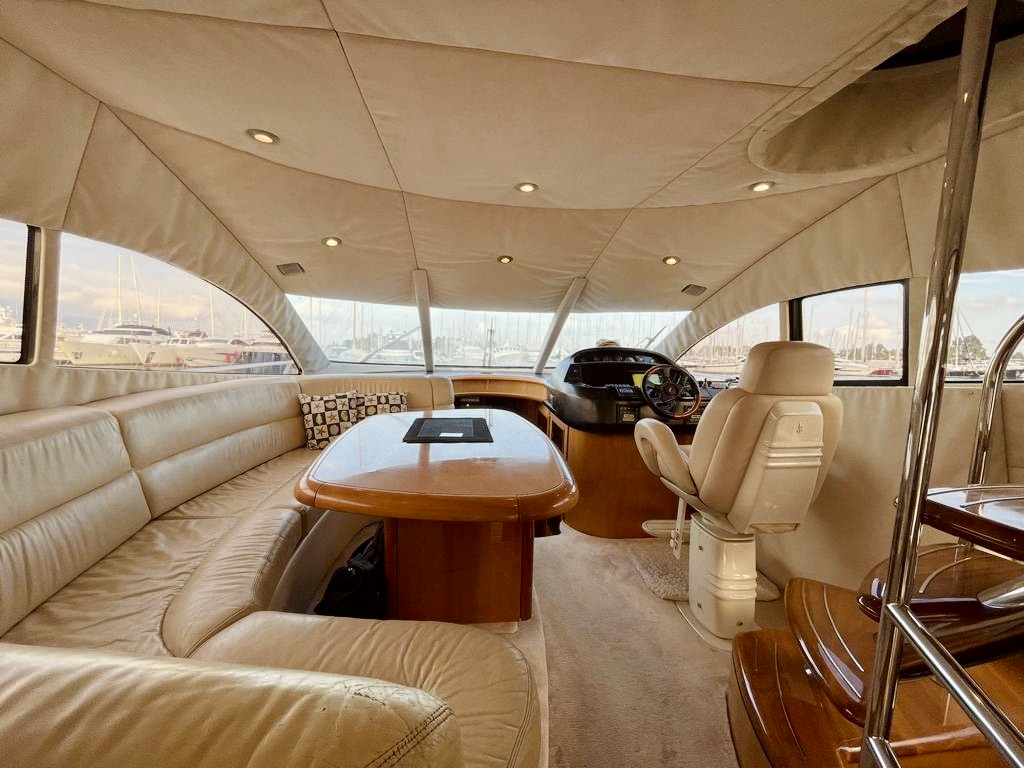

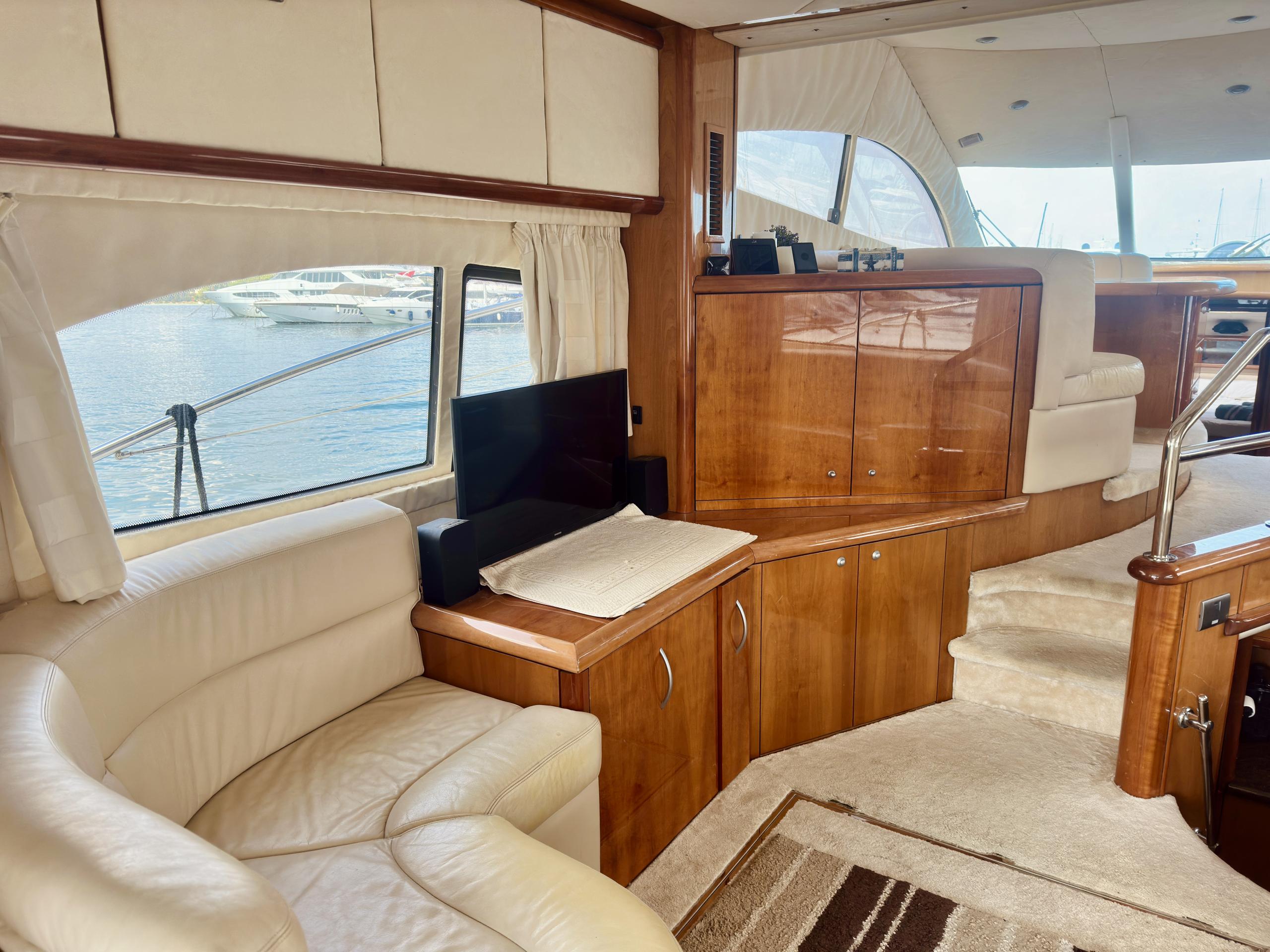

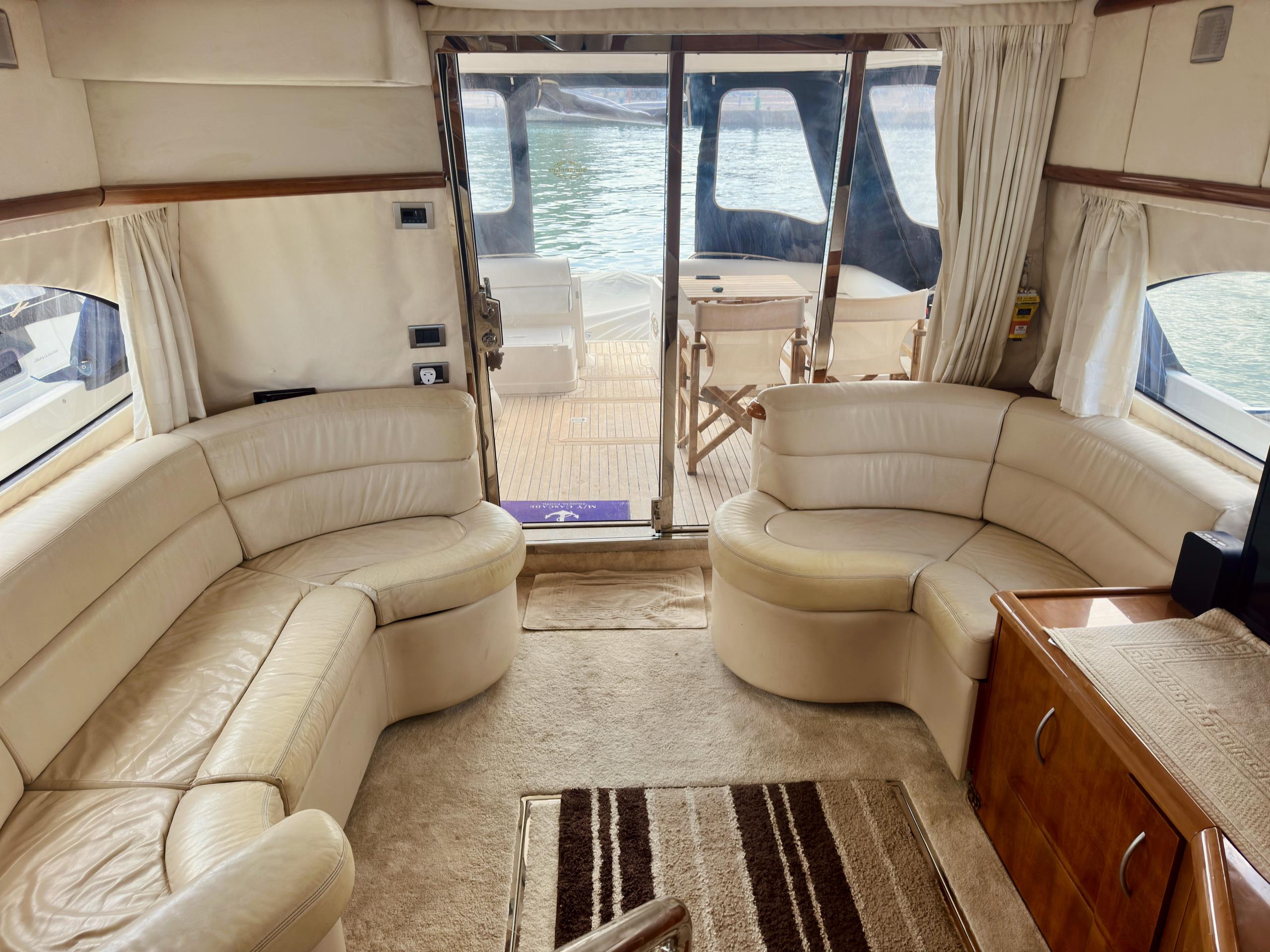

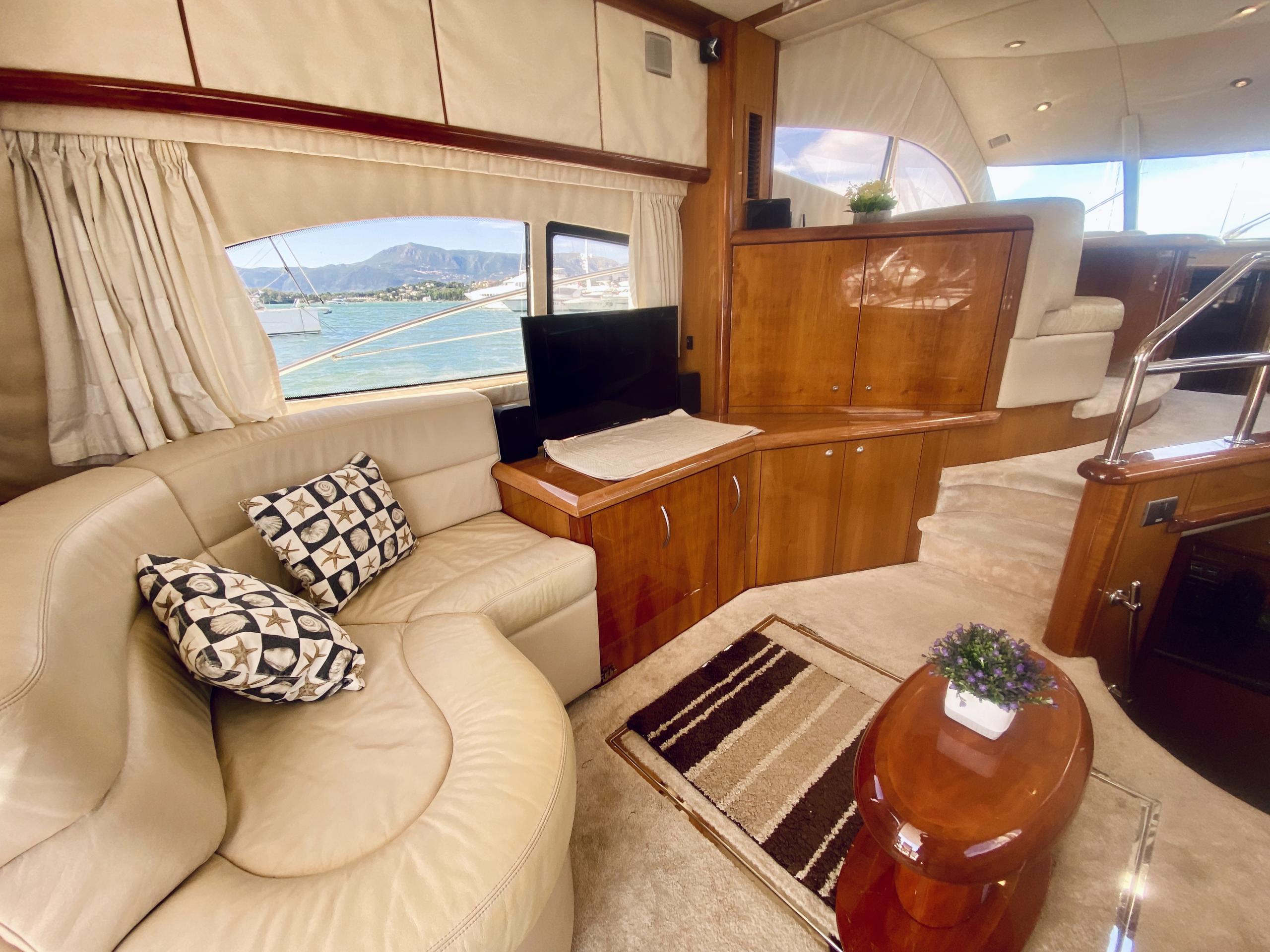

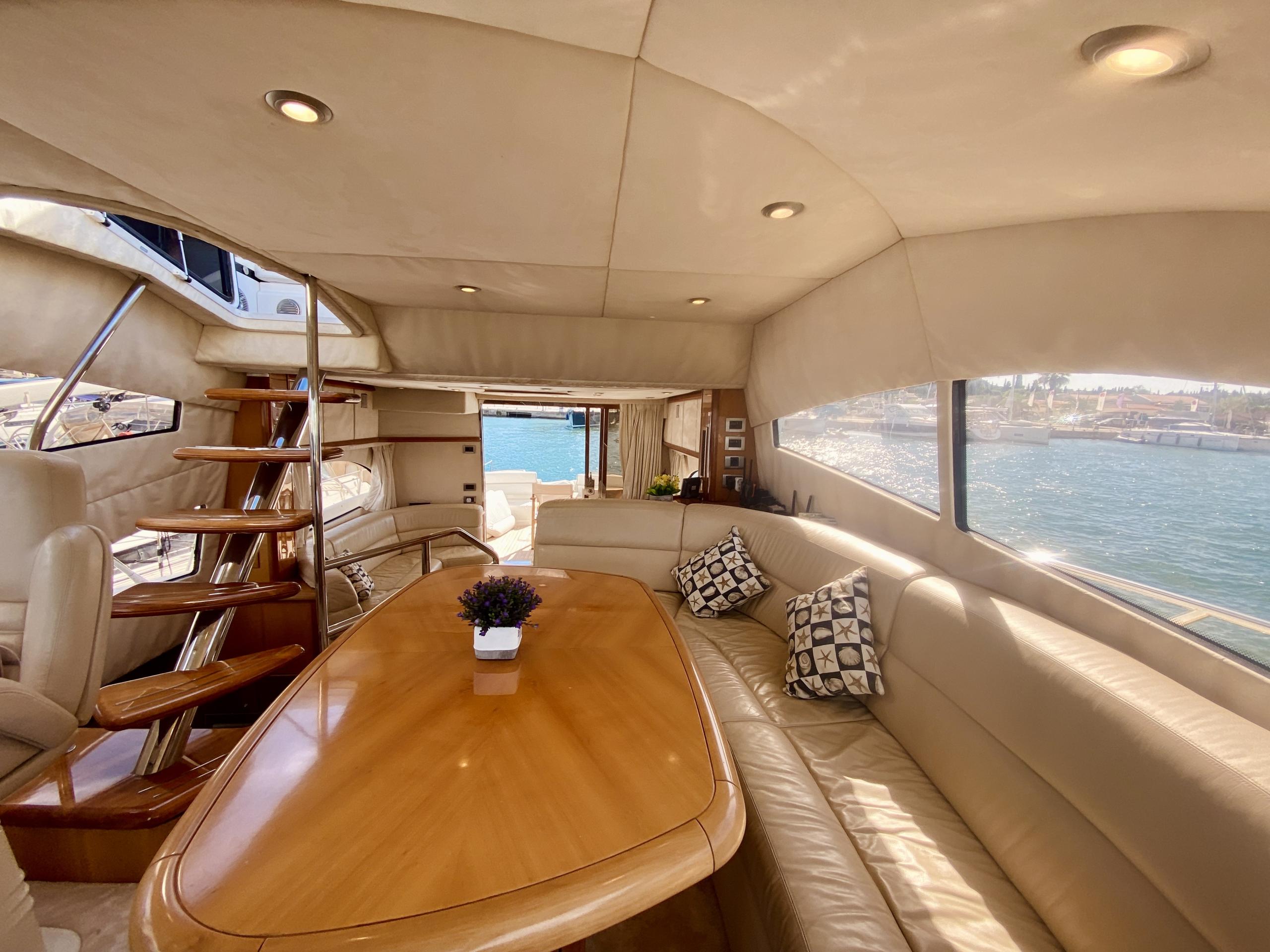

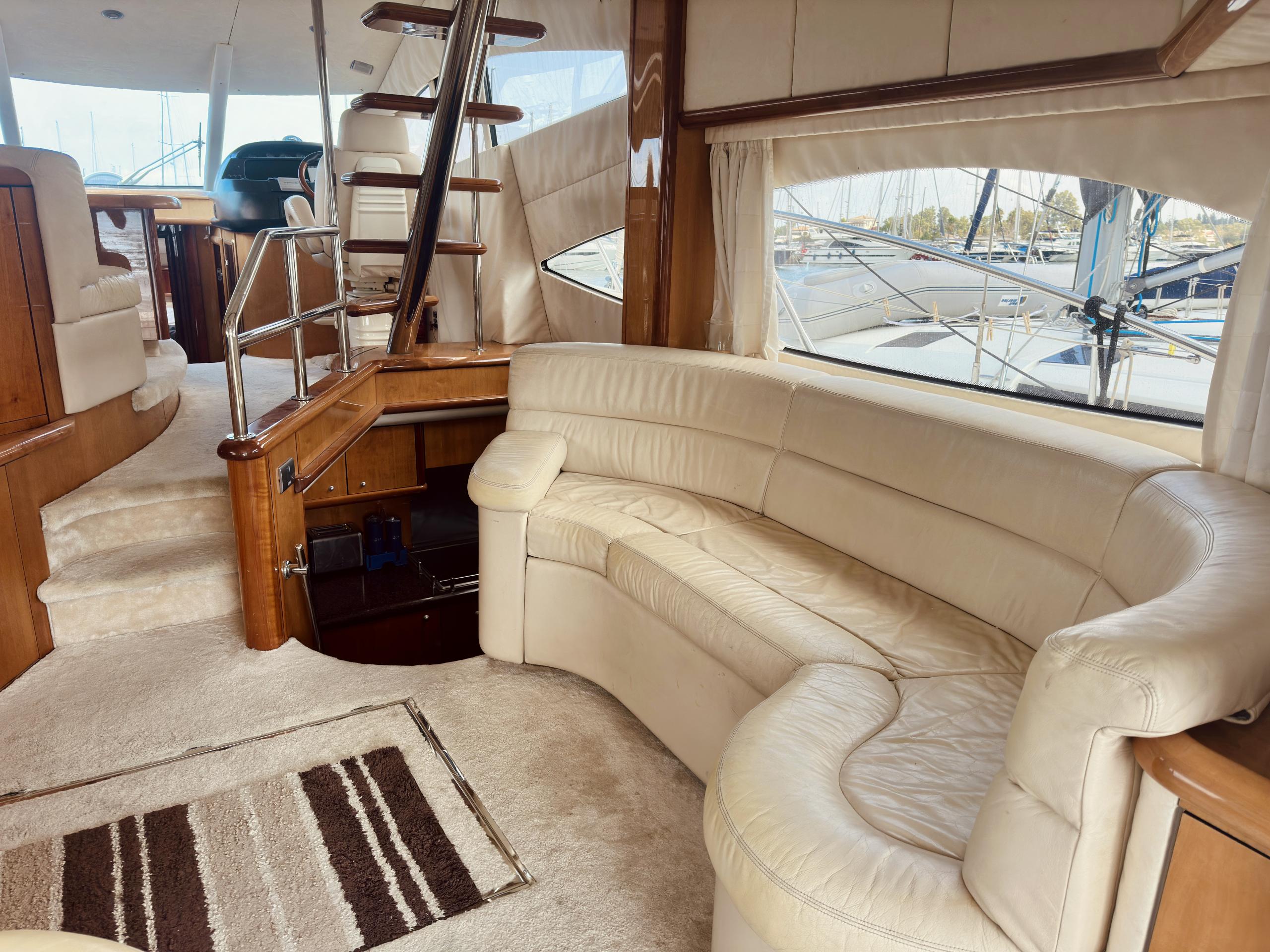

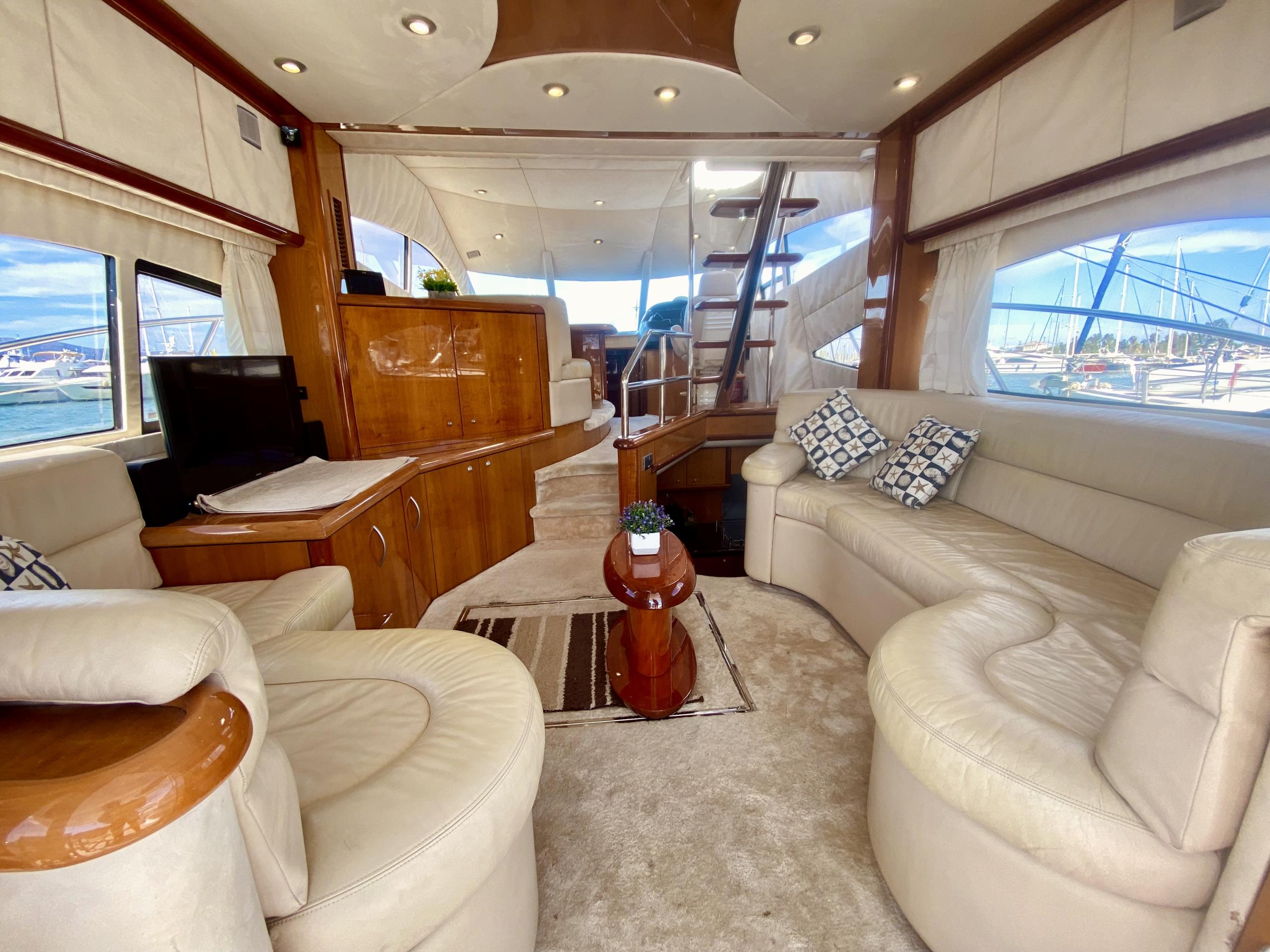

Saloon:

2 x Saloon Sofa
Dining Table

Audio & Visual Equipment

Smart TV Set (March 2022)
4G Router (March 2022)
Bluesound Streaming Sound System (July 2023)
DVD Player
Interior/Exterior Speakers (2021)

Deck Equipment

Electric Windlass
Teak Deck
Hydraulic Gangway
Cockpit Cushions
Cockpit Table
Swimming Ladder
Hydraulic Bathing Platform
Underwater Lights
Winter Cockpit Cover
Cockpit Shower

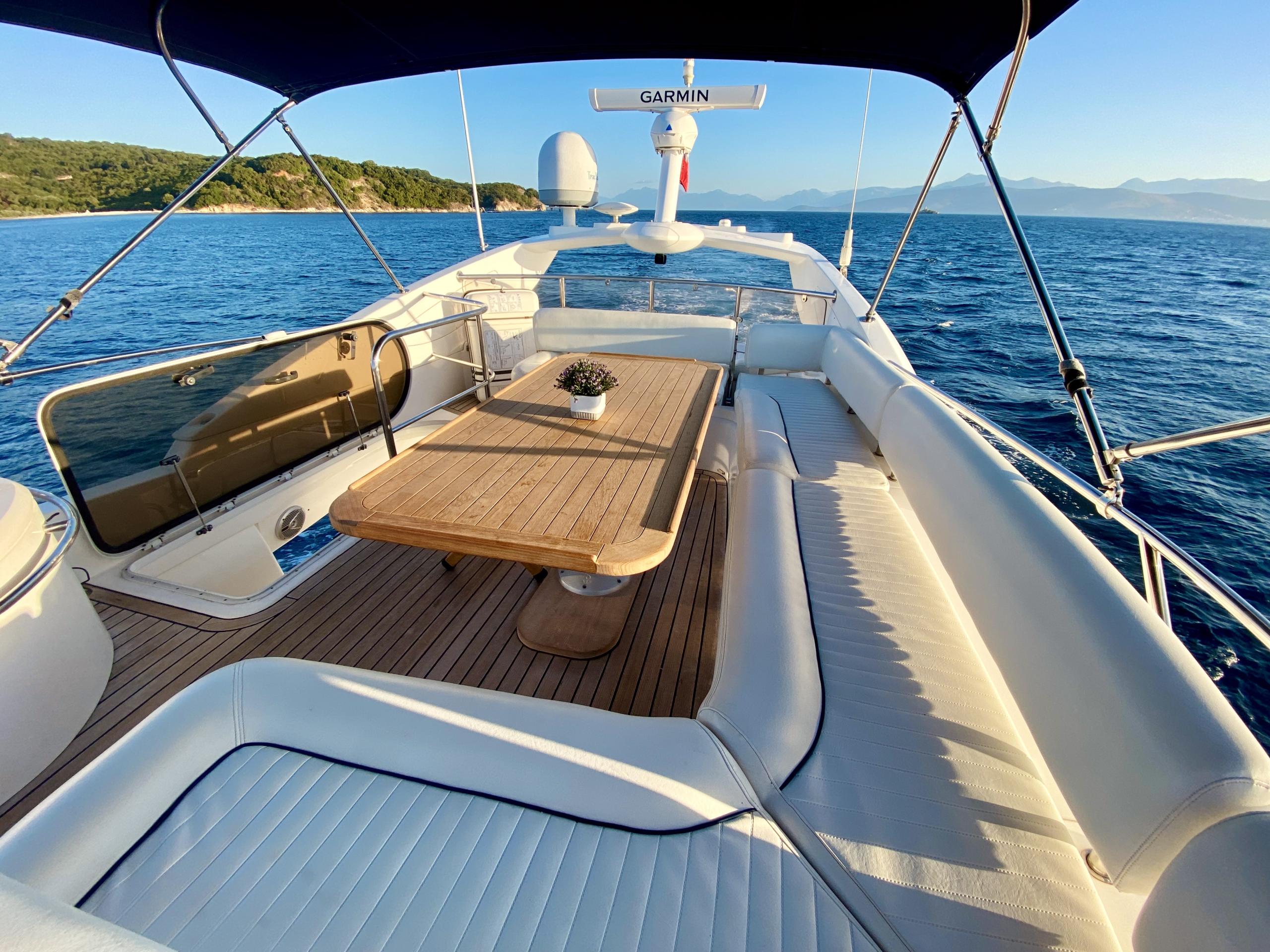

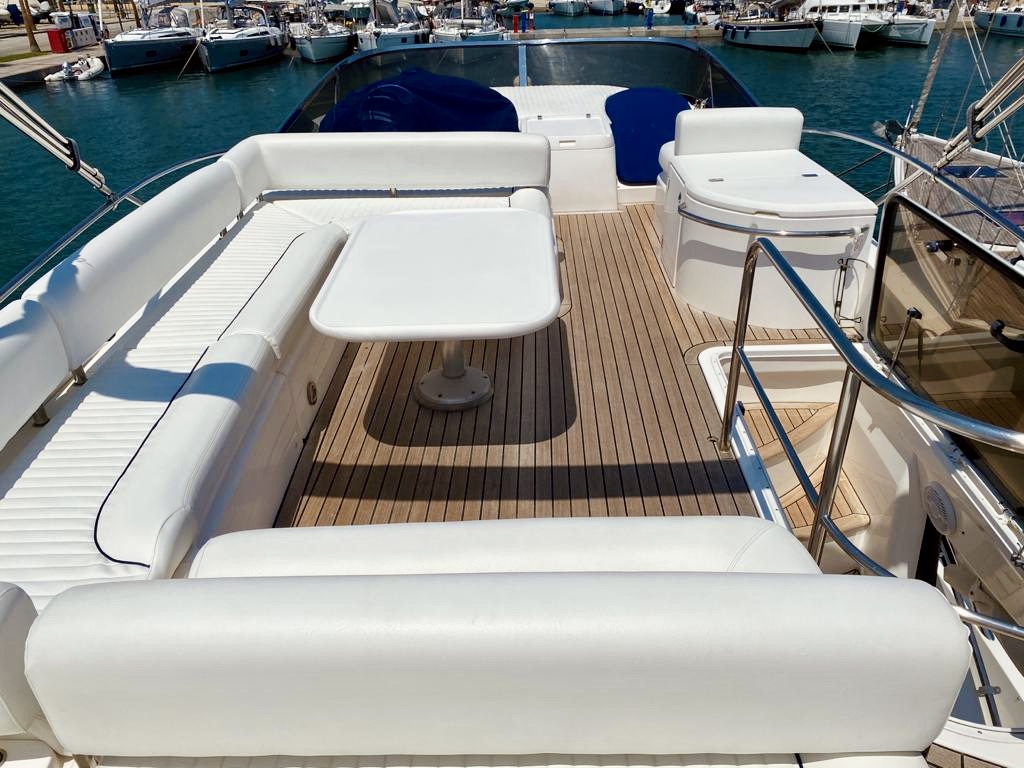

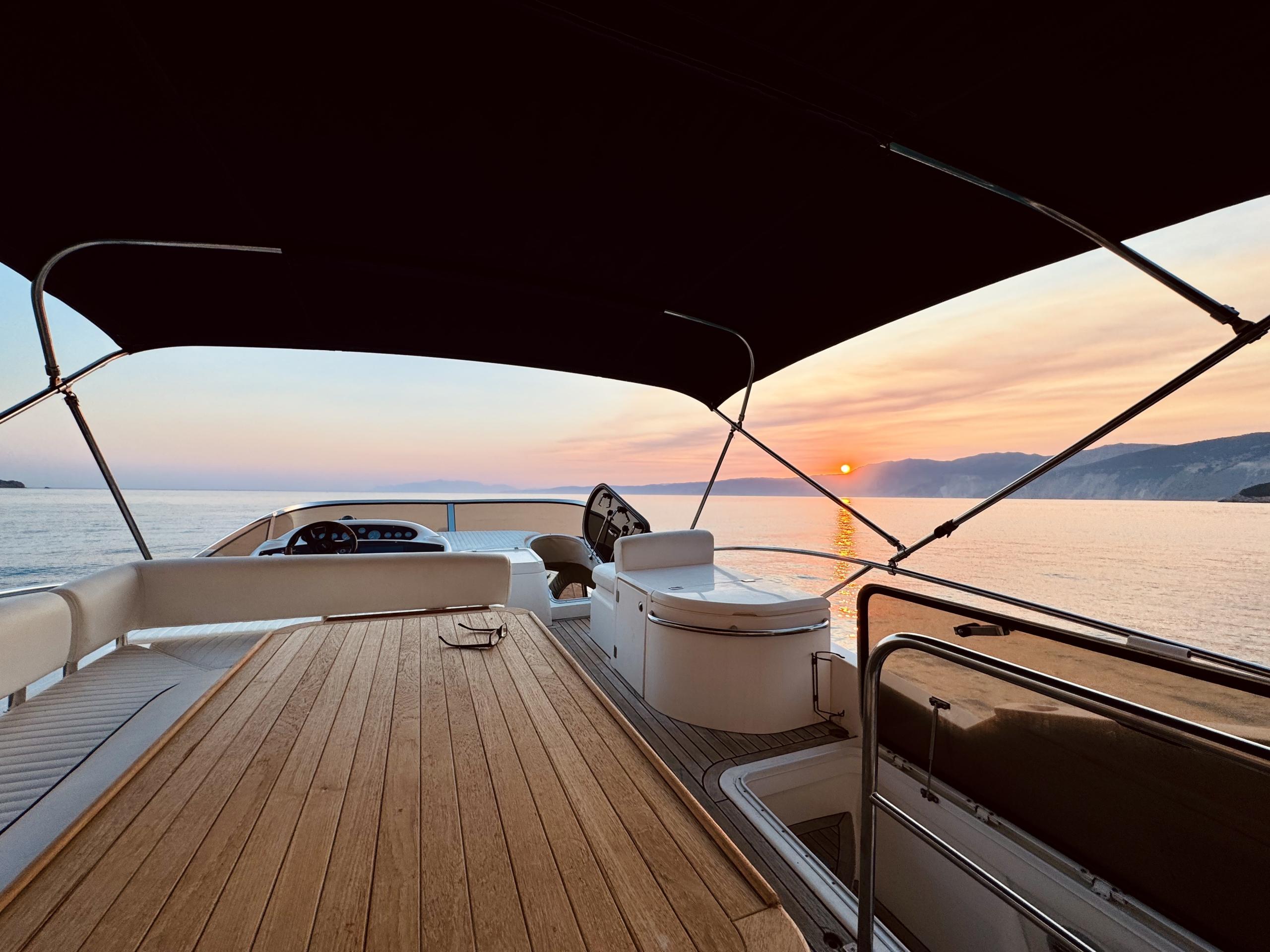

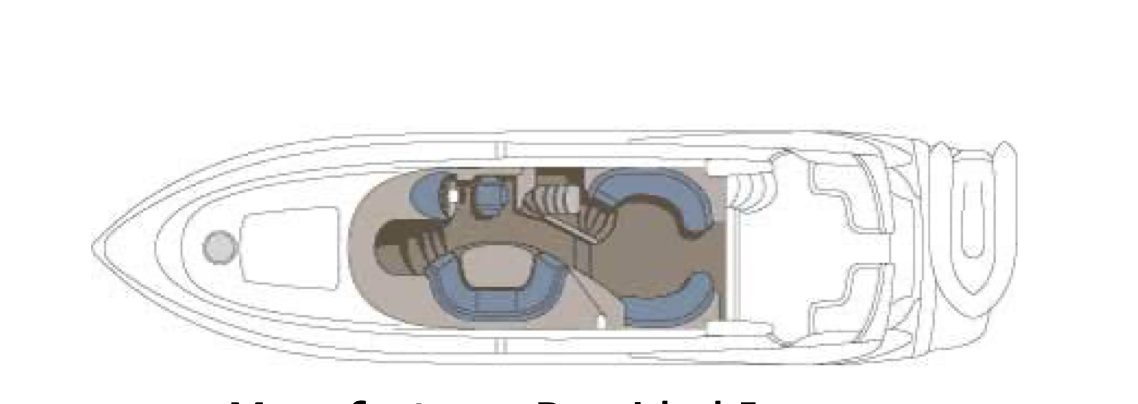

Flybridge:

Bimini Top
Fridge
Sofa for 8 Guests
Teak Dining Table (2023)
Sink
Fwd Sun Bed
Barbecue

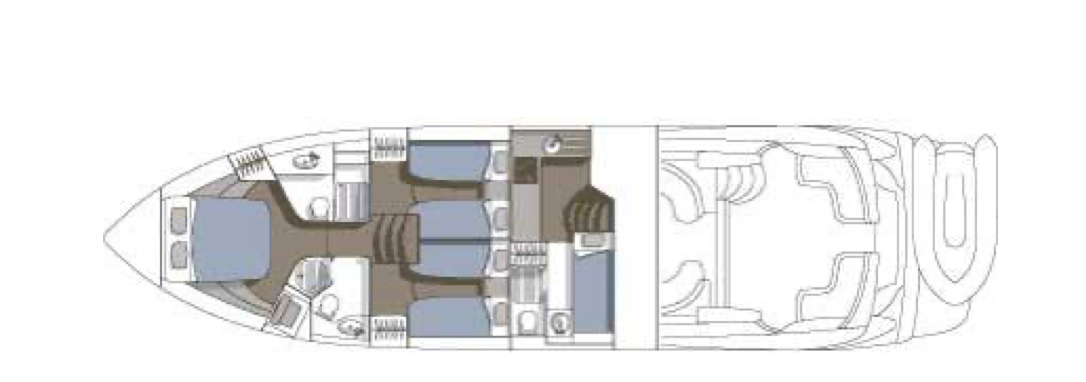

3 x Guest Cabins

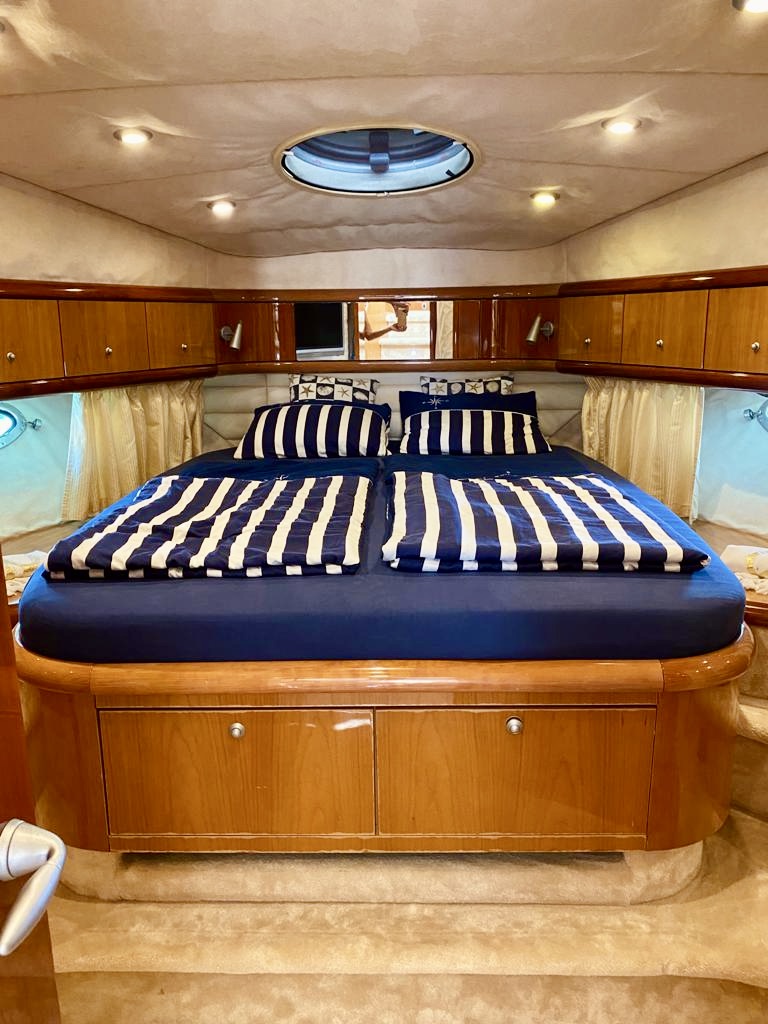

Master Cabin with a Double Bed and En-Suite Facilities
VIP Cabin with a Double Bed
Twin Cabin with Two Single Beds
1 x Head and Shower

Crew

Crew Cabin with a Single Bed
1 x Head and Shower

Gearbox oil seawater heat exchangers replaced (July 2021)
Engine oil seawater heat exchangers replaced (July 2021)
Fuel return seawater coolers replaced (July 2021)
Engine seawater through-hull valves replaced (June 2021)
Generator seawater through-hull valves replaced (June 2021)
All batteries replaced (June 2021)
Hull sandblasted to bare fiberglass and brand new treatment and antifoul (Feb 2023)
Anodes replaced (March 2023)
Osmosis test clear (Feb 2023)
Cutlass bearings and prop shaft seals replaced (Feb 2023)
Propellers balanced and ground (Feb 2023)
Generator genset coil was removed, rewound, and replaced (June 2023)
Generator engine was serviced (June 2023)
Engines serviced (April 2023)
Generator water separator replaced (June 2023)
Domestic water pump and pressure gauge replaced (June 2023)
Hot water heating element - replaced (July 2021)
Hot water expansion tank replaced (March 2022)
Domestic water pump replaced (Jul 2024)
Zipwake trim system replaced original trim tabs (upper and lower helm control) (Feb 2022)
Water maker serviced and pressure block replaced (March 2022)
Water maker low-pressure seawater pump replaced (March 2022)
Water maker filters changed (July 2023)
Air conditioning serviced (March 2022)
Air conditioning seawater cooling pump (1) replaced (March 2022)
Air conditioning seawater cooling pump (2) replaced (Αugust 2024)
New teak flybridge table (March 2023)
Vinyl windows for cockpit winter covers replaced (June 2022)
Bowthruster serviced and belt replaced (Feb 2023)
Deck wash pump replaced and deck wash bayonet fitting at bow replaced (Aug 2023)
TVs replaced with network-enabled smart TVs (March 2022)
4G router fitted to 12v system (March 2022)
Additional anchor chain added (20m) (Feb 2022)
Engine injectors cleaned (May 2023)
New injectors on Port Engine (Sept 2023)
Streaming music system fitted (Bluesound) (July 2023)
Deck music system speakers replaced (2021)
Holding tank system checked and overhauled (June 2023)

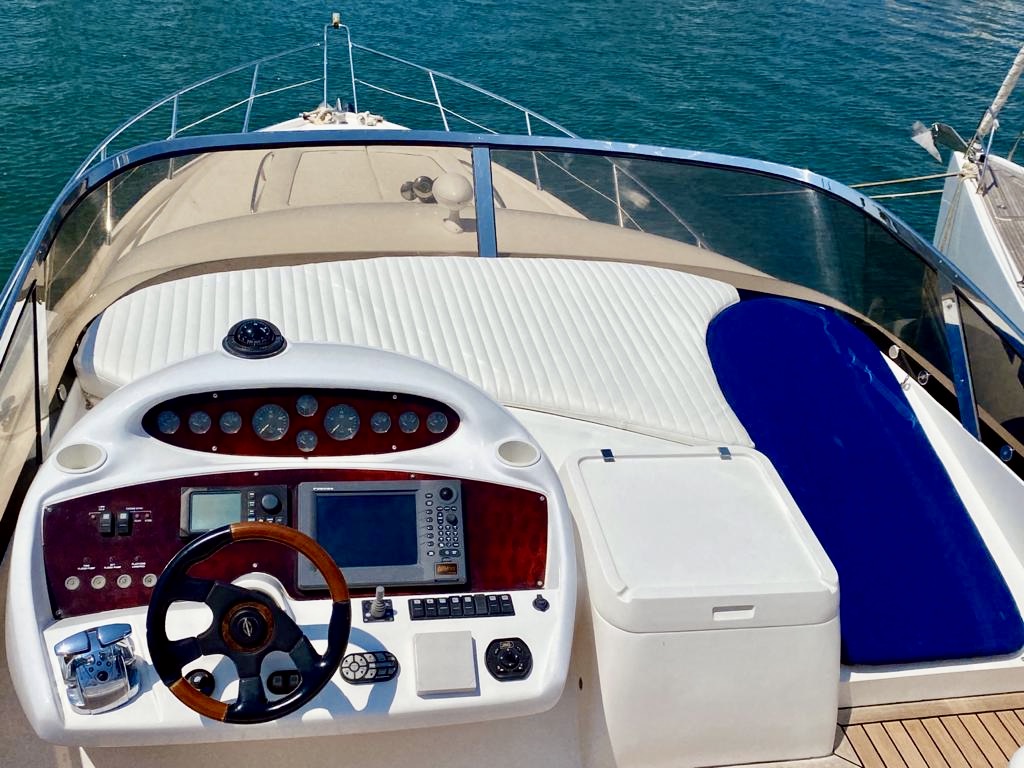

Upper and lower helm position instrumentation frames changed (to gloss black)
Toilet Macerator pump vacuum switches for master and guest cabins replaced
Windlass solenoid replaced (July 2024)
